Side-Cyclone Canister Vacuum Problems & Failure Guide

This report synthesizes findings from service calls, teardowns, and user complaints across multiple models of canister vacuums utilizing horizontal or “side-eject” cyclone technology. It is not a review of suction power claims or included attachments. It is an analysis of what fails, why it fails, and what it costs you when it does—including the less obvious issues like internal clogging architecture, fine dust bypass, and thermal shutdown patterns.

Search Intent Opening

If your canister vacuum loses suction after a few weeks, requires disassembly and manual cleaning after every use, overheats and shuts down mid-cleaning, or has a power head that stopped working while the motor still runs, you are facing fundamental cyclone design limitations, internal airflow obstruction, or electrical connection failures. Owners searching for “vacuum loses suction after few uses,” “cyclone vacuum clogs constantly,” or “canister vacuum power head not working” are often dealing with engineering choices that make the product a high-maintenance, short-lived appliance.

Search Query Coverage Block

People search this as:

vacuum loses suction after few weeks
cyclone vacuum clogs constantly
canister vacuum power head stopped working
vacuum overheats and shuts off
vacuum fine dust coming out exhaust
vacuum head sticks to floor no wheels
canister vacuum tips over when pulling hose
vacuum wand diameter not standard
vacuum parts discontinued unavailable
vacuum cord too short for room
vacuum requires cleaning after every use
vacuum suction weak but motor loud
vacuum debris stuck in cyclone chamber
vacuum hair wraps inside not bin
vacuum on off switch shorts out
vacuum dies after 1 year
vacuum power head connection wand failure
vacuum empties dust back into air

What Typically Fails First

Field data across multiple side-cyclone canister vacuum models shows this failure sequence order:

Cyclone chamber clogging / debris mat formation (immediate, within 1-5 uses)
Suction performance degradation (2-6 months)
Pre-motor filter loading (accelerated by cyclone inefficiency)
Motor overheating / thermal shutdown (6-12 months)
Electrical switch failure (12-18 months)
Power head / wand connection failure (12-24 months)

Most units become functionally unusable (suction loss, constant clogging) long before electrical components fail. The design itself ensures high maintenance burden and short effective life.

Observed Failure Patterns

Pattern 1: Immediate Clogging — Debris Trapped in Cyclone Chamber.

After first few uses, hair and debris accumulate in the cyclone chamber itself, not the collection bin. The chamber was never designed to store debris, but debris mats form, blocking airflow.
Indicates: Side-eject (horizontal) cyclone design cannot use gravity to drop debris. Material accumulates in the air path.
Escalation: Complete airflow blockage within weeks. Requires manual disassembly to clean.

Pattern 2: Rapid Suction Loss — Clean Filters Don’t Help.

Vacuum works well initially, but after 1-2 months, suction drops dramatically. Filters cleaned, bin emptied, but performance remains poor.
Indicates: Internal air path (cyclone vanes, transfer ports, tiny ventilation holes) clogged with compacted debris. Air cannot flow regardless of filter state.
Escalation: Eventual complete inability to pick up even light debris.

Pattern 3: Fine Dust Bypass — Exhaust Contamination.

User notices dust escaping from exhaust, or finds fine powder coating interior of vacuum and surrounding area after use.
Indicates: Cyclone separation efficiency too low for fine particles. They bypass the cyclone, load the pre-motor filter rapidly, and eventually reach the motor and exhaust.
Escalation: Motor contamination, bearing wear, premature motor failure.

Pattern 4: Overheating / Thermal Shutdown.

After several months, vacuum begins shutting off during use. Motor feels hot. Resumes after cooling.
Indicates: Restricted airflow (from internal clogs) causes motor to overwork. Thermal protection activates.
Escalation: Permanent motor damage if ignored. Eventual failure to restart.

Pattern 5: On/Off Switch Failure — Intermittent Power.

Vacuum requires wiggling switch to power on, or shuts off randomly during use.
Indicates: Switch contacts arced and pitted, or internal mechanism worn. Multiple units from same brand show identical failure.
Escalation: Complete loss of power control.

Pattern 6: Power Head Electrical Failure — Wand Connection.

Motor runs, but powered floor head stops rotating. Hand tools still work.
Indicates: Broken wire in wand connection, or failed electrical contacts at head. Often internal to wand assembly.
Escalation: Cannot clean carpets effectively. Replacement part often unavailable.

Pattern 7: Canister Instability — Tips Backward.

When pulling hose to extend reach, canister tips over. May fall down stairs, cracking plastic.
Indicates: Poor center of gravity design. Hose torque exceeds stability.
Escalation: Physical damage, unit unusable.

Pattern 8: Floor Head Adhesion — No Wheels.

Head suctions tightly to floor, requiring significant force to push. Lifts and bunches rugs.
Indicates: No glide wheels on floor head. High suction + direct contact = excessive friction.
Escalation: User fatigue, rug damage.

Pattern 9: Non-Standard Wand Diameter — Accessory Incompatibility.

User cannot use existing attachments; wand diameter is proprietary.
Indicates: Manufacturer chose non-standard size to force accessory sales.
Escalation: Limited functionality, replacement parts unavailable.

Pattern 10: Short Cord — Constant Outlet Changes.

Cord length insufficient for single room coverage.
Indicates: Cost-cutting on cord length.
Escalation: Usability frustration, but not failure.

Why Failure Happens (Engineering Cause)

Side-Eject Cyclone Geometry

Component: Cyclone chamber, debris transfer ports
Mechanism: In a proper cyclone, debris drops vertically into bin. Side-eject design forces debris to move horizontally against airflow. Hair and fibers mat against ports.
Trigger: Every use. Design flaw.
Consequence: Airflow restriction, suction loss, manual cleaning required.

Tiny Ventilation Holes / Convoluted Path

Component: Internal plastic vanes, small air passages
Mechanism: To create cyclonic action, air is forced through narrow channels. These channels also trap debris.
Trigger: Use with hair, fibers, or fine dust.
Consequence: Clogging, reduced performance.

Low Cyclone Efficiency

Component: Cyclone diameter, inlet velocity
Mechanism: Small cyclones have lower separation efficiency, especially for fine particles. Dust bypasses to filter.
Trigger: Use with fine dust (drywall, ash, pollen).
Consequence: Filter loading, motor contamination, exhaust dust.

Thermal Protection Activation

Component: Motor thermal fuse or bi-metal switch
Mechanism: Clogged airflow reduces cooling. Motor draws higher current, heats up. Thermal device opens.
Trigger: Restricted airflow from internal clogs.
Consequence: Interrupted cleaning, eventual motor damage.

Switch Contact Arcing

Component: Rocker or push-button switch
Mechanism: High motor startup current arcs across contacts. Over time, contacts pit, resistance increases, switch fails.
Trigger: Frequent on/off cycles.
Consequence: Intermittent operation, complete failure.

Wand Electrical Connection Fatigue

Component: Internal wires, contact pins in wand sections
Mechanism: Repeated flexing and separation of wand sections stresses wires. Strands break inside insulation.
Trigger: Normal use, storage.
Consequence: Power head dead, intermittent connection.

Center of Gravity Miscalculation

Component: Canister base, wheels
Mechanism: Heavy motor and cyclone at top, narrow wheelbase. Hose pulls from high point, creating tipping torque.
Trigger: Pulling hose to extend reach.
Consequence: Overturning, physical damage.

Floor Head Wheel Omission

Component: Floor head base plate
Mechanism: No wheels mean full surface contact. Suction creates seal, difficult to move.
Trigger: Use on smooth floors.
Consequence: Excessive pushing force, user fatigue.

Usage Patterns That Accelerate Failure

Vacuuming Hair Regularly

Hair wraps in cyclone vanes, clogs tiny holes.
Result: Rapid suction loss, requires disassembly.

Vacuuming Fine Dust (Drywall, Ash, Concrete)

Fine particles bypass cyclone, load filter, contaminate motor.
Result: Motor failure in months.

Ignoring Internal Clogs

Continuing to use when suction drops.
Result: Motor overheating, thermal shutdown.

Yanking Hose to Extend Reach

Jerking motion tips canister, stresses wand connections.
Result: Canister damage, broken wires.

Using on High-Pile Rugs

Head suctions rug, bunches it, may stall motor.
Result: Rug damage, motor stress.

Frequent On/Off Cycling

Switch contacts wear faster.
Result: Switch failure.

Storing with Wand Fully Extended

Constant tension on wand wires.
Result: Wire fatigue, breakage.

Maintenance Traps Sellers Don’t Mention

Consumable Parts

Pre-motor filter: $10-20, requires frequent replacement (every 3-6 months).
Post-motor filter (HEPA): $15-30, often neglected, degrades air quality.
Cyclone assembly: Not replaceable—entire unit must be replaced if clogged permanently.
Wand electrical assembly: $20-40 if available, often discontinued.

Hidden Cleaning Zones

Cyclone chamber interior: Debris packs into vanes, requires tools to extract.
Transfer ports: Narrow openings where debris compacts.
Pre-motor filter cavity: Dust accumulates even with filter in place.
Post-motor path: Fine dust coats internal surfaces.

Sensor Contamination

Some models have airflow sensors that get coated, triggering false shutdowns.
Requires disassembly to clean.

Descaling Cycles — Not applicable.

Seal Replacement Needs

Cyclone-to-bin seals may leak, reducing suction.
Often not sold separately.

Lubrication Needs

Motor bearings sealed—no user service.
Wand connections may benefit from contact cleaner, but not mentioned.

Real-World Usage Failure Scenarios

Scenario 1: The Long-Hair Household

User vacuums weekly, household with long hair and pets. After 3 uses, suction drops significantly. User empties bin, cleans filter—no improvement. After 2 months, vacuum barely picks up anything. Motor sounds loud, airflow weak.
Failure chain: Hair packed into cyclone vanes and transfer ports. Internal path 80% blocked. Manual disassembly required to remove matted debris. Without cleaning, motor overheats at 6 months.
Lesson: This design is incompatible with hair. Requires constant internal cleaning.

Scenario 2: The Renovation Cleanup

User vacuums fine drywall dust after project. Unit works initially. After one use, exhaust emits dust cloud. Within weeks, motor sounds rough, then fails.
Failure chain: Cyclone efficiency <99% allows fine dust to bypass. Pre-motor filter loads instantly, dust reaches motor bearings. Bearings contaminated, motor seizes.
Lesson: Never use this vacuum for fine dust. Shop vac required.

Scenario 3: The Elderly User

User has limited strength. Vacuum head sticks to floor, requiring significant force to push. Canister tips when hose pulled. User frustrated, stops using.
Failure chain: No wheels on head + poor balance = physically unusable.
Lesson: Design ergonomics failure, not repairable.

Scenario 4: The Multi-Year Owner

User vacuumed lightly for 18 months. On/off switch becomes intermittent, then fails completely. Vacuum won’t power on.
Failure chain: Switch contacts arced, failed open. Replacement switch available? Unlikely.
Lesson: Switch is wear part. If unavailable, unit scrap.

Scenario 5: The Power Head Failure

User notices carpet cleaning ineffective. Motor runs, but brush roll not spinning. Hand tools work.
Failure chain: Broken wire in wand connection. Internal strands fatigued.
Lesson: If wand not replaceable, power head useless.

Scenario 6: The Constant Clogger

User vacuums 5 minutes, spends 20 minutes cleaning debris from internal passages. Does this weekly for 6 months, then gives up.
Failure chain: Design inherently high-maintenance. User abandons product.
Lesson: Not failure, but product fails to meet usability expectations.

Common Misdiagnosis Patterns

Misdiagnosis 1: “Filters are dirty” → Actually: Cyclone chamber clogged

Symptom: Suction weak despite clean filters.
True cause: Debris packed in cyclone vanes and transfer ports.
Field verification: Disassemble cyclone unit, inspect interior. If debris visible, clean manually.

Misdiagnosis 2: “Motor is weak” → Actually: Airflow restriction

Symptom: Motor loud, suction weak.
True cause: Blocked air path, motor working against high resistance.
Field verification: Remove all filters and attachments, test suction at hose. If strong, restriction is downstream.

Misdiagnosis 3: “Power head motor died” → Actually: Wand connection broken

Symptom: Motor runs, head dead.
True cause: Broken wire in wand.
Field verification: Test continuity from wand contacts to head. If open, wand issue.

Misdiagnosis 4: “Switch is bad” → Actually: Thermal protector tripped

Symptom: Unit won’t turn on after overheating.
True cause: Thermal fuse open, waiting to cool.
Field verification: Let cool 30 minutes. If it works, thermal event. If not, switch or fuse.

Misdiagnosis 5: “Suction loss due to clog” → Actually: Cyclone efficiency drop

Symptom: Fine dust in exhaust.
True cause: Cyclone cannot separate fine particles.
Field verification: Inspect post-motor area for dust. If present, design limitation.

Misdiagnosis 6: “Vacuum is broken” → Actually: Cord too short

Symptom: Cannot reach room end.
True cause: Design flaw, not failure.
Field verification: Measure cord. If <20 feet, it’s by design.

Field Verification Tests (No Tools)

Test 1: Suction Path Isolation Test

Remove hose from canister. Cover canister inlet with palm. Turn on.
Expected: Strong pull, hand held firmly.
Failure: Weak pull indicates canister internal blockage. Proceed to Test 2.

Test 2: Cyclone Chamber Inspection

Empty bin. Shine flashlight into cyclone intake. Look for visible debris mats.
Expected: Clean vanes, no visible buildup.
Failure: Hair, fibers packed into vanes. Requires disassembly.

Test 3: Filter Airflow Test

Remove pre-motor filter. Hold up to light.
Expected: Light passes through easily.
Failure: Filter opaque, clogged. Replace.

Test 4: Head Drag Test

Place head on hard floor, turn on. Push forward.
Expected: Glides with moderate effort.
Failure: Requires excessive force, head sticks. Indicates no wheels.

Test 5: Stability Test

Place canister on level surface. Extend hose fully, pull horizontally.
Expected: Canister may slide but not tip.
Failure: Tips over easily. Design flaw.

Test 6: Wand Continuity Test (if power head)

Remove wand. Using a known-working attachment, test if power passes through wand.
Expected: Head spins when wand connected.
Failure: Head works direct to canister but not through wand—wand broken.

Test 7: Switch Behavior Test

Cycle switch on/off rapidly 10 times.
Expected: Consistent operation.
Failure: Intermittent or fails—switch wearing out.

Realistic Service Life Expectation

Usage Level	Technician-Observed Lifespan	Primary Failure Mode
Light (1x/week, clean home)	2-3 years (with constant cleaning)	Cyclone clogging, user abandonment
Average (2x/week, some hair)	1-2 years	Suction loss, motor overheating
Heavy (daily, pets, hair)	6-12 months	Irreversible clogging, motor failure
Fine dust use (construction)	1-3 months	Motor contamination, seizure

Observed reality: These vacuums are high-maintenance by design. Even with perfect cleaning, the internal architecture ensures gradual performance loss. Most users abandon them within 1-2 years due to frustration.

Repair Difficulty and Cost Reality

Serviceability Limits:

Cyclone assembly: Not replaceable—integral to canister.
Motor: Replaceable but requires full disassembly. $40-80 part.
Switch: Replaceable if accessible. $5-15.
Wand electrical assembly: Replaceable if available. $20-40.
Power head: Replaceable if available. $30-60.
Hoses: Replaceable if available. $20-40.
Filters: Replaceable. $10-30.

Sealed assemblies: Cyclone unit is often sonic-welded; cannot disassemble for cleaning.

Labor vs Part Economics:

DIY switch replacement: $10 part + 30 minutes = worth it.
DIY motor replacement: $60 part + 2 hours = borderline on $200 vacuum.
Professional repair: $100 diagnostic + $100 labor + parts = $200-300. New vacuum $150-250.
Conclusion: Professional repair never economical. DIY possible for switches and simple parts, but internal clogs are the real killer.

Calibration Requirements:

None.

Repair vs Replace Decision Logic

Replace IF:

Repair cost ≥ 60% of new comparable unit price ($120+ repair on $200 vacuum).
Cyclone assembly irreversibly clogged (cannot clean).
Motor failed (burned out, seized).
Wand electrical broken and part unavailable.
Unit age > 3 years and any major fault.
Physical damage (cracked canister, broken handle).

Repair IF:

Switch only (DIY) and unit < 2 years old.
Filter replacement only.
Hose replacement (if available).

Scrap IF:

Cyclone clogged + motor failing (two subsystems).
Fine dust contamination reached motor.
Parts unavailable for common failures (wand, head).
User fatigue—if you hate cleaning it, replace it.

Models or Designs to Avoid

Based on field failure patterns, avoid canister vacuums with:

Side-eject (horizontal) cyclone design – Debris accumulates in chamber.
No wheels on floor head – Impossible to push.
Narrow, multi-path internal air channels – Clog instantly.
Non-replaceable cyclone assembly – Cannot clean permanently.
Proprietary wand diameter – Accessory lock-in.
Short power cord (<20 feet) – Usability failure.
Poor center of gravity – Tips over.
Tiny ventilation holes in cyclone – Hair magnets.
No pre-motor filter – Debris reaches motor.
Unavailable replacement parts – Disposable by design.

What Design Features Signal Durability

True vertical-drop cyclone – Gravity assists debris transfer.
Wheels on floor head – Glides easily.
Simple, open air path – Less clogging.
User-cleanable cyclone chamber – Can disassemble.
Standard wand diameter – Universal accessories.
Long power cord (>25 feet) – Usable.
Low center of gravity, wide wheelbase – Stable.
Large, washable pre-motor filter – Protects motor.
Available spare parts – Manufacturer supports longevity.

Safer Build Types to Look For

Bagged canister vacuums – No cyclone clogging, better filtration.
Uprights with simple dirt cup – Easier to clean.
Central vacuum systems – Motor remote, no clogging.
Commercial-grade canisters – Serviceable, parts available.
Vacuums with metal wands – No electrical connection to fail (if corded head).

Technician Field Notes

“I’ve taken apart more of these ‘cyclone’ vacuums than I can count. The insides are always packed with hair and dust. The design ensures it.”
“The side-eject cyclone is a marketing solution, not an engineering one. It looks cool but performs poorly.”
“When a customer says ‘I have to clean it after every use,’ I tell them that’s not normal. It’s a design flaw.”
“The wand electrical failure is the second most common repair. And parts are almost never available.”
“If the head has no wheels, it’s unusable on carpet. Period.”
“We don’t repair these anymore. The labor cost exceeds the vacuum’s value, and the root cause—the cyclone design—can’t be fixed.”
“The best ‘cyclone’ vacuum is actually a bagged vacuum. No clogging, no dust clouds, and it lasts 10+ years.”

Heavy-Use User Reality

For users vacuuming daily with pets, long hair, or large homes:

Expect weekly internal cleaning required.
Suction will degrade noticeably within 6 months.
Motor may overheat and fail at 12-18 months.
Wand electrical failure likely by 18 months.
Total cost of ownership: $200 unit + $50 filters/year + your labor (hours/month). Higher than a quality bagged upright.

Recommendation for heavy use: Avoid this design entirely. Choose a bagged canister or a simple upright with minimal internal obstructions.

Hidden Ownership Cost Analysis

Consumables:

Pre-motor filters: $10-20 every 3-6 months.
Post-motor HEPA: $15-30 every 12 months.
Belts (if applicable): $5-10 every 6-12 months.

Maintenance Parts:

Switch: $5-15 (if available).
Wand assembly: $20-40 (if available).
Power head: $30-60 (if available).
Hose: $20-40 (if available).

Downtime:

Internal cleaning: 1-2 hours per session, weekly.
Part replacement: 1-2 weeks for shipping (if available).

Service Labor:

DIY: 30 minutes to 2 hours, plus frustration.
Professional: $100-200 = not economical.

Accessory Lock-in:

Non-standard wand prevents use of existing tools.
Proprietary filters force brand purchase.

True 3-Year Cost (Average Use):

Purchase: $200
Filters: $15 x 6 = $90
Your labor: 1 hour/week x 156 weeks = 156 hours of cleaning time.
Potential switch/wand repair (if available): $40
Total monetary cost: $330 over 3 years, or $110/year, plus significant unpaid labor.

Compare to quality bagged upright: $300 purchase, $50 bags/year, lasts 10 years = $80/year, minimal cleaning time.

Early Warning Signs Before Major Failure

Performance Drift:

Suction weaker after each use (cyclone clogging).
Takes longer to clean same area.

Noise Changes:

Motor pitch higher (restricted airflow).
Rattling from canister (debris in chamber).

Heat Increase:

Canister warm (restricted airflow).
Exhaust air hot (motor overwork).

Visual Cues:

Dust visible at exhaust (filter bypass).
Debris visible in cyclone chamber (impending clog).
Wand cracks at connection points.

Error Frequency:

Shuts off during use (thermal protection).
Requires restarting (switch issues).
Power head intermittent (wand connection).

Final Risk Rating

User Type	Risk Level	Primary Failure Mode	Recommendation
Light User (clean home, no pets, 1x/week)	Medium	Cyclone clogging over 2-3 years	Acceptable only if you enjoy maintenance. Consider bagged alternative.
Average User (some hair, 2x/week)	High	Suction loss by 12-18 months, constant cleaning	Avoid. Maintenance burden exceeds value.
Heavy User (daily, pets, long hair)	Very High	Irreversible clogging, motor failure within 12 months	Not suitable. Choose different design.
Fine Dust User (construction, drywall)	Extreme	Motor contamination in 1-3 months	Do not use. Shop vac required.

Conditional Verdict:

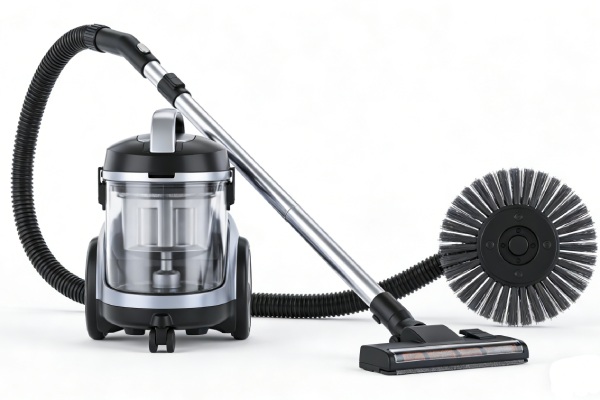

If you buy a side-cyclone canister vacuum, you are accepting a high-maintenance, short-lived appliance. The internal architecture ensures clogging, and the lack of spare parts ensures disposal when something breaks.
The only path to longevity is constant, meticulous internal cleaning—which most users will not sustain.
The floor head with no wheels is a usability deal-breaker. Avoid any model missing this basic feature.
The electrical wand connection is a known weak point. If it breaks and parts are unavailable, the power head becomes useless.

Field Note: The most reliable vacuum is often the simplest. Bagged canisters with straight-through airflow and no cyclonic tricks routinely outlast these complex designs by a factor of 3-5. The technology may look modern, but the reliability is not. Choose based on repairability, not marketing.
